M7132 Auto Rectangular Table Hydraulic Surface Grinding Machine
The main performance characteristics:
1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
2. Worktable ball track using steel materials for high precision steel balls, abrasion resistance, easily moved and labor saving, and can be greatly improve work efficiency.
3. Former after skidway through careful scraping flower, not only slide smoothly, and wear-resisting, maintain good accuracy, flexible and convenient operation. manual worktable driven by synchronous belt transmission, wear well.
4. The spindle adopts super precision ball bearing P4, after strict selection after the pre pressure measurement, assembled in the greenhouse, and with the labyrinth design completely waterproof, In order to ensure the service life of the bearing and the grinding surface roughness.
5. No vibration, low noise motor spindle.
6. According to the needs of users with a permanent magnet sucker or electromagnetic sucker.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts.
| Description |
Units |
M7132x1000 |
M7132x1600 |
M7132x2000 |
| Size of work table(L x W x H) |
mm |
1000x320 |
1600x320 |
2000x320 |
| Max. Longitudinal movement of worktable |
mm |
1100 |
1700 |
2100 |
| Max. Distance from the spindle centerline to the worktable surface |
mm |
570 |
570 |
570 |
| Max. Cross movement of grinding herd |
mm |
350 |
350 |
350 |
| Max. Vertical movement of grinding head |
mm |
400 |
400 |
400 |
| Vertical movement of the grinding head by hand wheel |
Every lattice |
mm |
0.01 |
0.01 |
0.01 |
| Each turn |
mm |
1 |
1 |
1 |
| Rapid lifting motor |
Power |
KW |
0.37 |
0.37 |
0.37 |
| Speed |
R/min |
1440 |
1440 |
1440 |
| Abrasive wheel dim (L x D x W) |
mm |
350x127x40 |
350x127x40 |
350x127x40 |
| Speed of grinding wheel |
r/min |
1440 |
1440 |
1440 |
| Total power of motor |
KW |
9 |
10 |
12 |
| Power of spindle motor |
KW |
5.5 |
5.5 |
5.5 |
| Power of oil pump motor |
KW |
3 |
4 |
5.5 |
| Processing accuracy |
mm |
0.015/1000 |
0.015/1000 |
0.015/1000 |
| Surface roughness |
um |
Ra:0.63 |
Ra:0.63 |
Ra:0.63 |
| Package(L x W x H) |
mm |
2800x1750x2350 |
4500x2000x2350 |
5500x2000x2350 |
| Net weight |
Kg |
3500 |
3550 |
3600 |
|
|
ELECTRIC MAGNETIC CHUCK

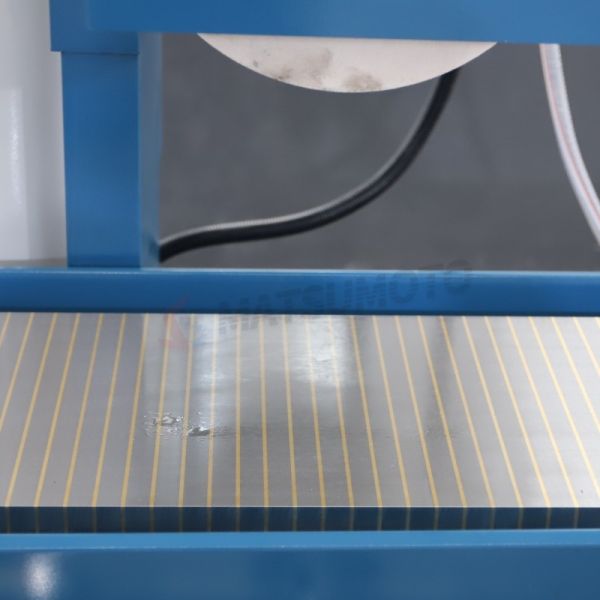

Standard with electric magnetic chuck, can tighten many parts and even small parts, easy to operate, save time.
|
|
|
GRINDING WHEEL

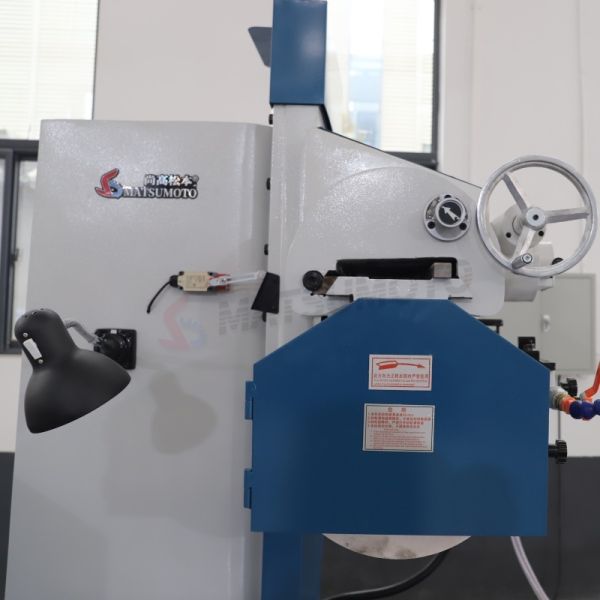

Large grinding volume, can grinding various planes and complex forming surface. Work lamp as standard.
|
|
|
HYDRAULIC TRANSMISSION
Reasonable structure, imported hydraulic transmission. Grinding and transmission synchron ization.
|
|
|
OPTIONAL ACCESSORIES

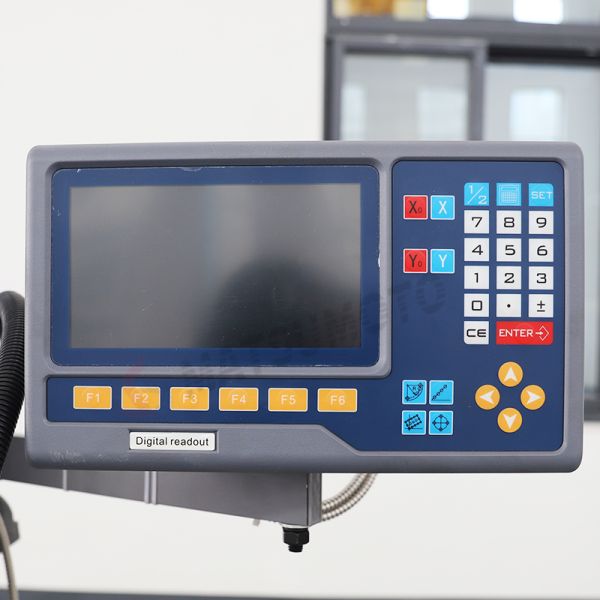

Electronic digital display,stable and precise measurement, quality assurance.
|
